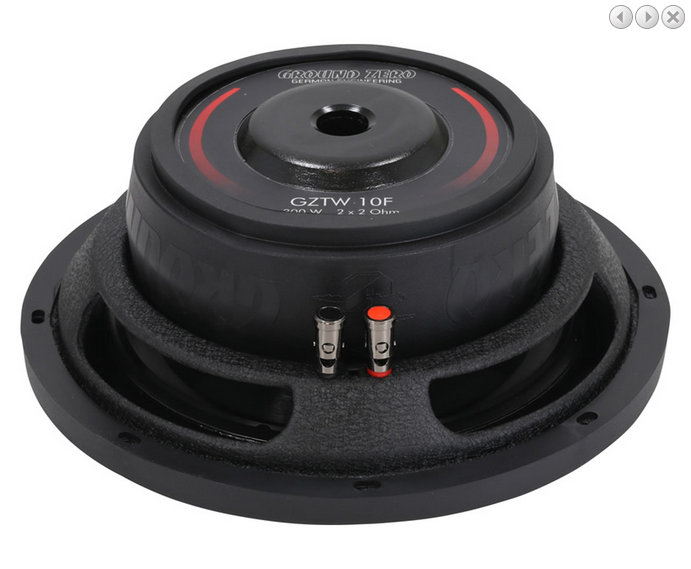

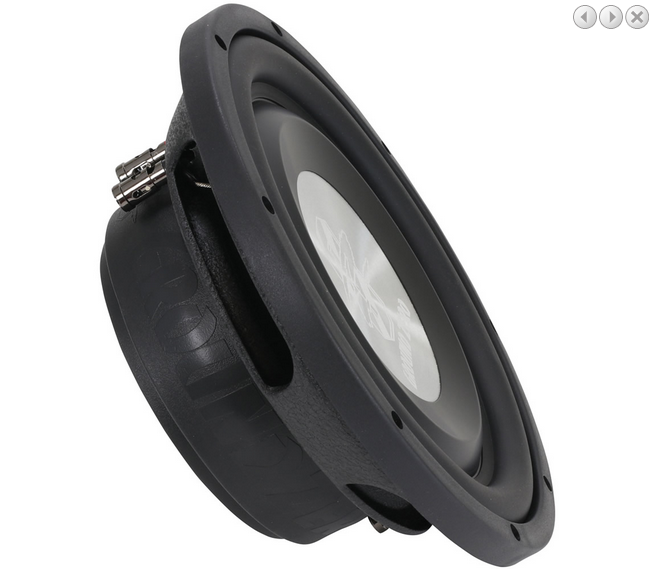

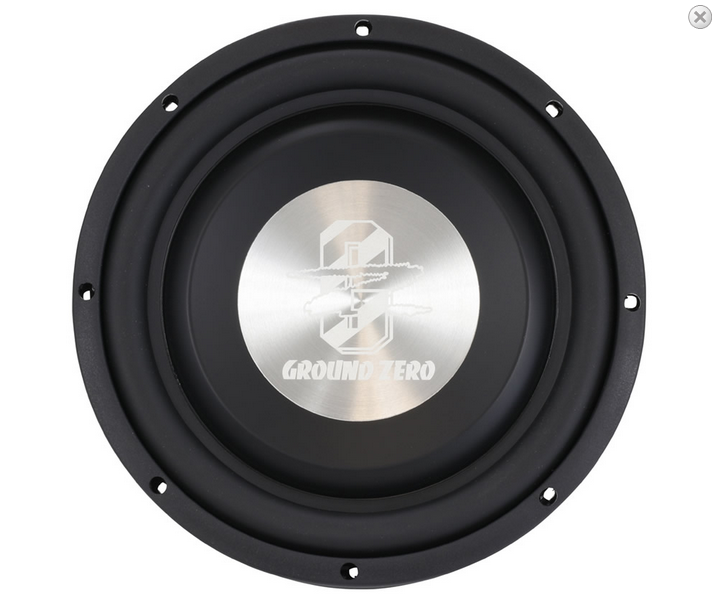

Ground Zero GZTW 10F
Ground Zero GZTW 10F
Ground Zero GZTW 10F

Ground Zero GZTW 10F

(0)
Референтен код: 1750

€133,96

Ground Zero GZTW 10F

€133,96

€133,96

Нискочестотен говорител с плитък монтаж 10″ с импеданс 2х2 ома

Ръководство: GZTW-10F_OM_AWV2.2

Model High-Quality Flat Subwoofer
Diameter 25 cm / 10″
Power Handling (RMS) 300 Watts
Impedance 2x 2 Ohms
Efficiency 87.5 dB
Power Recommendation 150 – 450 Watts
Voice Coil 50 mm / 2″ copper
Membran Layout IMPP
Max. Excursion (Xmax) 30 mm / 1.18″
Mounting Ø 232 mm / 9.13″
Mounting Depth 88 mm / 3.46″
Resonance Frequency (Fs) 45.1 Hz
Overall Qaulity (Qts) 0.564
Equiv. Air Volume (Vas) 24.1 L / 0.85 cu.ft.

Допълнителни характеристики

Woofer size: 10“ (25cm)
Power handling: 300W RMS
Sensitivity: 88dB ( 1W / 1m )
Impedance: 2 x 2 ohm
Magnet size: – oz
T/C parameters
Fs : 38,1 Hz
Vas: 27,1 L
Xmax: 13 mm
Qms: 6,14
Qes: 0,44
Qts: 0,41
Sd: – cm²
BL: 16 T/m
Z: 1 / 4 ohms
Mms: 117,6 gr
Re: 4 ohms
