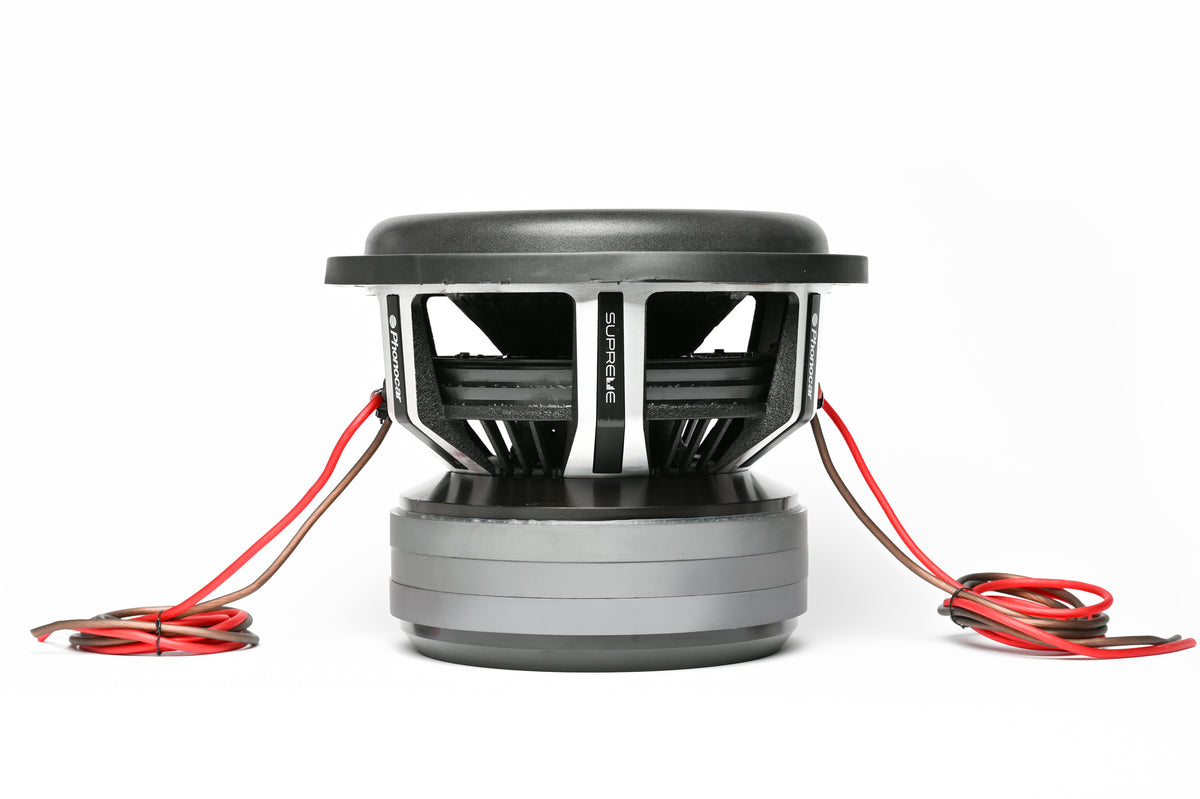

Phonocar Supreme 02797

SPL субуфер за състезания Phonocar Supreme с 4′ намотка

6000 W Subwoofer for SPL systems with outstanding performance and long-lasting efficiency thanks to the innovative cooling system.

• 30 KG OF PURE SOUND PRESSURE.
• COMPETITION BASSES.
• Ø 320 mm
• SELF-VENTILATED PLATE

 MATERIALS AND TECHNOLOGY

• cooling system self-ventilation with externally and internally perforated magnet.
• double coil 100 mm with aluminum support.
• reliable connection cables soldered on the coil.
• basket die-casting aluminium.

TECHNICAL FEATURES
• Peak Power 6000 W.
• RMS Power 3000 W.
• Fs 46.2 Hz.
• Qms 5.67.
• Vas 15,2 L.
• Cms 0.05 mm/N.
• Mms 262.9 gr.
• Rms 13.5 g/s.
• Xmax 41 mm.
• Sd 490.9 cm2.
• Qes 0.60.
• Re 1.0 Ohms.
• Le 0.75 mH.
• Bl 11.3 N/A.
• Qts 0.54.
• Nref 0,24%.
• 1-W-SPL.85.8 dB.
